Cubicle Track - Ceiling Mount Curtain Track

Item #: 75034

Cubicle Track - Ceiling Mount Curtain Track

Content: aluminum alloy
Sold By: Foot

IFC 98-Cubicle Track-Ceiling Mount

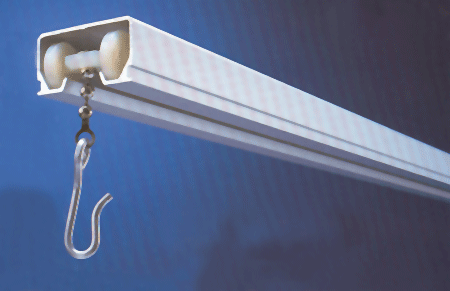

Ceiling Mount Curtain Track for residential or commercial use. Hang privacy or shower curtains with ease.

Track size is 1 3/8"W x 3/4"H x .058" wall thickness. Extruded of aluminum alloy. Track has satin anodized finish(aluminum) or a white acrylic electrostatic paint. Tracks are custom fabricated to shape and size in one continuous piece, whenever possible. Tracks are shipped complete with 2.2 carriers per foot and end caps. No additional charge for bends. There is a minimum of 2'6" x 2'6" on any shaped track.

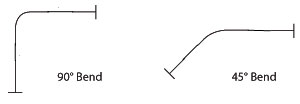

All bends have a radius of 12". Can have either a 90 degree bend or a 45 degree bend. A crating charge of $20 will be added to all orders under 50 feet.

Custom cut tracks are NOT returnable.

Tracks over 8 feet in length will incur motor freight charges. We recommend splicing tracks over 8 feet to save on shipping cost. Bends typically require splicing for shipping.

Track can be mounted to ceiling by using Panhead screws and a Phillips Head Screwdriver. Holes must be pre-drilled into track as well.

Track will support approximately 10 lbs. per foot.

We recommend the help of a professional installer when installing this track

Please complete the Layout Form to receive a complete quote including shipping before ordering track.
Layout Form - Click here to email or print layout/measurement form.

Installation Instructions

Common Uses: Cubicle Track, Cubicle Curtains, Hospital Curtains, Medical Privacy Curtains, Hospital Cubicle Curtains, Cubicle Curtain Track, Hospital Privacy Curtains, Cubical Curtains, Jail Shower Curtains, Breakaway Curtains, Shower Curtains
